Ultra-Stable Low TC Resistor Products

Temperature Coefficient of 2 ppm/°C, 5 ppm/°C or 10 ppm/°C
Tolerance to 0.01%, Resistance Range 50 ohm to 500 Meg
Type USF 200 Series Ultra-Stable Low TC Ultra-Precision Film Resistors

Absolute TC: 2 ppm/°C Maximum

  • Resistance Range: 50 ohm to 10 Meg
  • Voltage Ratings: 300 Volts to 2500 Volts
  • Max. Absolute TC of 2 ppm/°C -40°C to +85°C, referenced to +25°C
Type USF 200 Series Ultra-Stable Low TC Ultra-Precision Film Resistors Download Datasheet (pdf)
Type USF 300 Series Ultra-Stable Low TC Ultra-Precision Film Resistors

Absolute TC: 5 ppm/°C Maximum

  • Resistance Range: 50 ohm to 25 Meg
  • Voltage Ratings: 300 Volts to 2500 Volts
  • Max. Absolute TC of 5 ppm/°C -40°C to +85°C, referenced to +25°C
Type USF 300 Series Ultra-Stable Low TC Ultra-Precision Film Resistors Download Datasheet (pdf)
Type TF Low TC Ultra-Precision Film Resistors

1K to 125 Meg, Tolerance to ±0.01% Low TC to 5 ppm/°C, -15°C to +105°C

  • 5 standard resistance tolerance to ±0.01%
  • Resistance range from 1.00K to 125 Meg
  • Low TC, 5 ppm/°C, 10 ppm/°C, or
    15 ppm/°C
  • Long-term stability to 0.01% per 1,000 hours
  • Low voltage coefficient
Type TF Low TC Ultra-Precision Film Resistors Download Datasheet (pdf)
Type USFS High Voltage, Ultra-Stable, Low TC Selected Resistor Sets

Total Set Resistance up to 100 Megohm with Absolute TC of 2 ppm/°C
Voltage Ratings up to 5000 Volts DC - Custom Selected Resistor Sets Available

Type USFS High Voltage, Ultra-Stable, Low TC Selected Resistor Sets Download Datasheet (pdf)
Type USG Ultra-Stable Low TC Precision High Voltage Resistors

Absolute TC of 10 ppm/°C, -40°C to +85°C

  • Standard Tolerance: ±0.1%
  • Voltage Ratings: 5 KV, 10 KV, and 15 KV
  • Industry's Lowest Absolute TC:
    10 ppm/°C -40°C to +85°C, referenced to +25°C
Type USG Ultra-Stable Low TC Precision High Voltage Resistors Download Datasheet (pdf)

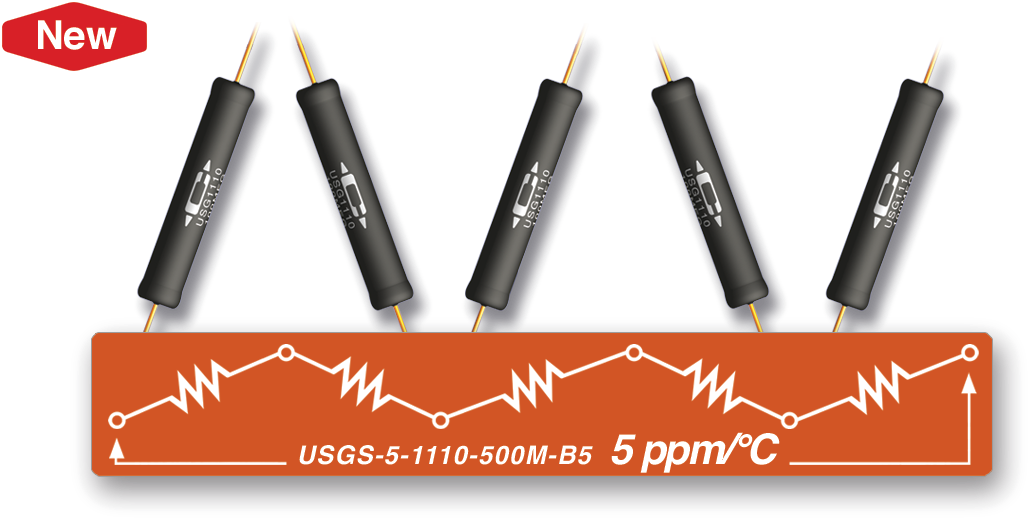

Type USGS High Voltage, Ultra-Stable, Low TC Selected Resistor Sets

Total Set Resistance up to 500 Megohm with Absolute TC of 5 ppm/°C
Voltage Ratings up to 50KV DC - Custom Selected Resistor Sets Available

ype USGS High Voltage, Ultra-Stable, Low TC Selected Resistor Sets Download Datasheet (pdf)
